Crystal Resonator
| Pictures | Crystal Type | Product Dimensions | Crystal Frequency | Crystal Deviation | Crystal Load | Working Temperature | Specification |
|---|---|---|---|---|---|---|---|
|
LCC 3225 | 3.2x2.5x0.7mm | 8~54MHZ | ±10 ±30PPM | 8PF,12PF | -40℃~+85℃ | Download |
|
LCC 2520 | 2.5x2.0x0.5mm | 12~54MHZ | ±10 ±30PPM | 8PF,12PF | -40℃~+85℃ | Download |
|
LCC 2016 | 2.0x1.6x0.5mm | 16~54MHZ | ±10 ±30PPM | 8PF,12PF | -40℃~+85℃ | Download |
|

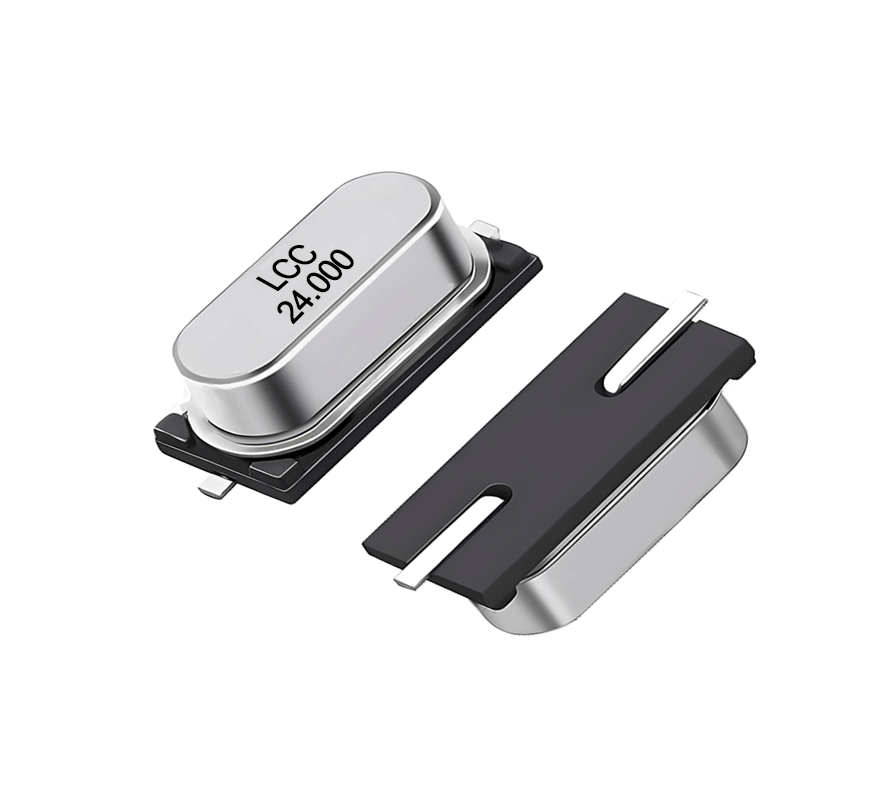

LCC HC-49S | 11.0x4.65x3.68mm | 3.579545~100MHZ | ±10 ±30PPM | 12PF,20PF | -20℃~+70℃ | Download |
|
LCC 1612 | 1.6x1.2x0.3mm | 24~54MHZ | ±10 ±30PPM | 8PF,12PF | -40℃~+85℃ | Download |
|
LCC 2016 | 2.0x1.6x0.5mm | 19.2/26/38.4/52/76.8MHZ | ±10PPM | 8PF,12PF | -40℃~+85℃ | Download |
|
LCC HC-49SMD | 11.5x4.7x4.1mm | 3.579545~54MHZ | ±10 ±30PPM | 12PF,20PF | -20℃~+70℃ | Download |
|
LCC 1210 | 1.2x1.0x0.4mm | 16~96MHZ | ±10 ±30PPM | 8PF,12PF | -40℃~+85℃ | Download |
|
LCC 2520 | 2.5x2.0x0.5mm | 19.2/26/38.4/52/76.8MHZ | ±10PPM | 8PF,12PF | -40℃~+85℃ | Download |
|
LCC 49SMD-Mini | 6.1x4.0x2.0mm | 8~50MHZ | ±10 ±30PPM | 12PF,20PF | -20℃~+70℃ | Download |
|
LCC 5032 | 5.0x3.2x1.1mm | 8~54MHZ | ±10 ±30PPM | 8PF,12PF | -40℃~+85℃ | Download |
